• 432320-001 HP 146GB 2.5" SFF 3G Single Port SAS 10K RPM Hot Plug Hard Drive | NEW

    £199.09 £119.09

    PRODUCT INFORMATION

    432320-001

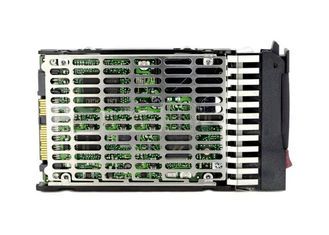

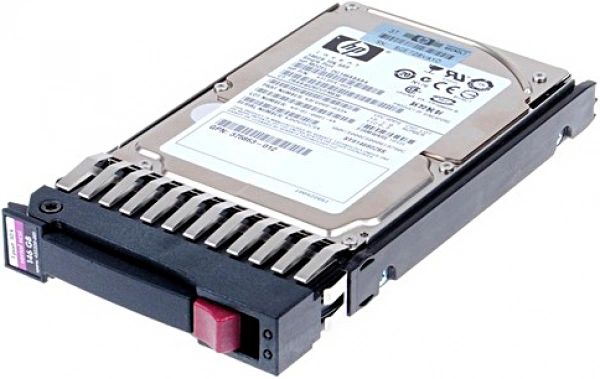

    HP 146GB 2.5" SFF 3G Single Port SAS 10K RPM Hot Plug Hard Drive


    This 432320-001 is a small form factor 2.5 inch HP SAS hard drive, mounted in a universal hotplug tray. This is a genuine HP hard drive with HP firmware and is specifically for use in HP Proliant servers and storage arrays. This is not a third party or generic drive. The 432320-001 hard drive has a capacity of 146 gigabytes and has a rotational speed of 10,000 (10k) rpm. The external data transfer rate is 3.0 gigabytes per second. This 146GB model is one of our most popular products.

    431958-B21 is the option part number used by HP to reference this drive, but that part number won't appear anywhere on the drive. The HP spare number of 432320-001 will be visible on the label on the front of the tray. There are several model numbers and assembly numbers that are aggregated under the option part number 431958-B21.

    These 432320-001 drives are categorized as an HP SAS Enterprise hard drive. The Enterprise hard drives deliver high performance solutions for hosting high transaction based applications. They are ideal for mission critical server applications and external storage.


    Option Part: 431958-B21

    Spare Part: 432320-001

    GPN: 375863-012

    Model: DG146A3516, DG146A4960, DG146ABAB4

    Assembly Part: 431954-003, 438628-002, 443177-002


    Compatible with: BL20p G4, BL25p G2, BL45p G2, BL460c G1/G5/G6/G7, BL465c G1/G5/G6/G7, BL480c, BL620c G7, BL680c G5/G7, BL685c G1/G5/G6/G7, BL860c, BL870c, DL1000, DL160 G6, DL160se G6, DL165 G7, DL170h G6, DL180 G6, DL320 G6, DL360 G4p/G5/G6/G7, DL365 G1/G5, DL370 G6, DL380 G4/G5/G6/G7, DL385 G1/G2/G5/G5p/G6/G7, DL580 G3/G4/G5/G7, DL585 G1/G2/G5/G6/G7, DL785 G5/G6, DL980 G7, ML350 G5/G6, ML370 G4/G5/G6, ML570 G3/G4, SL390s G7, WS460c G6, and possibly others.


    Specifications:

    Hard Drive Capacity: 146GB

    Generation: SAS

    External Data Transfer Rate: 3.0 GB/sec

    Rotational Speed: 10,000 rpm

    Form Factor (Drive): 2.5-inch low profile

    Interface: SAS (Serial Attached SCSI)

    Data Storage Device Type: SAS (Server Attached Storage) device

    Hard Drive Device Type: Hard drive for server/storage unit (Hot-plug)

    Height: 0.591"

    Width: 2.75"

    Hotswap Tray: Included (Attached)

    SOLD & DISPATCHED BY SURPLUSDRIVESUK LTD
