Cisco C3K-PWR-1150WAC= Switch Accessory redundant power supply

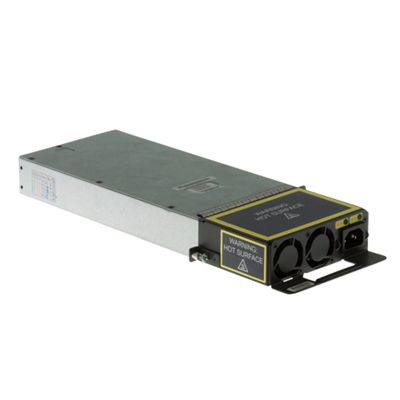

The Cisco C3K-PWR-1150WAC is a redundant power supply designed for use with the Cisco RPS 2300 Catalyst Switch Redundant Power System, providing maximum output power of up to 1150 watts.
Physical specifications
H x W x D
- 1.65 x 6.0 x 14.90 in.
- (4.2 x 15.24 x 37.85 cm)
Weight
- 5.6 lb (2.6 kg)
Total input BTU (1000 BTU/Hr = 290W)
- 3924 BTU/Hr, 1150W
Operating temperature
- 23 to 113F (-5 to 45C)
Storage temperature
- -4 to 149F (-20 to 65C)
Relative humidity operating, noncondensing
- 10 to 85% noncondensing
Relative humidity nonoperating, noncondensing
- 0 to 95% noncondensing
Operating altitude
- 10,000 ft. (3000 m) (up to 45°C)
Storage altitude
- 15,000 ft. (4570 m)
Mean time between failure (MTBF)
- Calculated MTBF must be greater than 300,000 using Telcordia SR-332, Method 1, Case 3.
- Demonstrated MTBF is 500,000 hrs (with 90% confidence level)
Electromagnetic compatibility certifications
- FCC Part 15 Class A
- EN 55022: 1998 (CISPR22) Class A
- EN 55024: 1998 (CISPR24)
- VCCI Class A
- AS/NZS CISPR22 Class A
- CE
- MIC
- GOST
- China EMC certifications
Safety certifications
- UL/CSA 60950-1 first edition
- CAN/CSA 22.2 No. 60950-1 First Edition
- TUV/GS to EN 60950-1 First Edition
- EN 60950-1:2001
- IEC 60950-1:2001
- AS/NZS 60950-1
- CE
- CLEI
- CCC approval pending
- NOM approval pending
