Dell 0X160K / Seagate ST9146803SS SAS Hard Drive - NEW
Dell 0X160K / Seagate ST9146803SS SAS Hard Drive - NEW

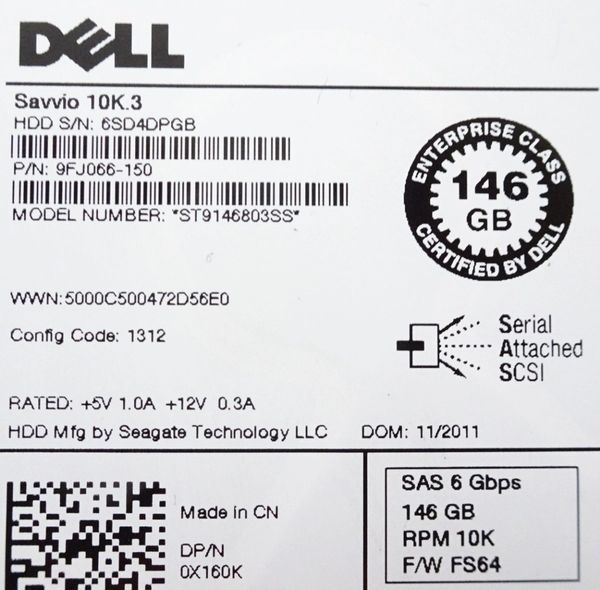

Dell X160K / Seagate Savvio 10K.3 146GB 10K 6.0Gbps SFF Serial SCSI / SAS Hard Drive ST9146803SS - Brand New OEM
Dell X160K / The Seagate® Savvio® 10K.3 drive offers the best combination of power efficiency and enterprise performance, with large capacity for mainstream server and external storage applications for the enterprise. The Savvio 10K.3 drive with PowerTrim™ technology uses 75 percent less power than a 3.5-inch 15K drive for the lowest power profile of any Tier 1 mission-critical drive. It is 70 percent smaller than 3.5-inch drives, enabling more system airflow, which results in lower cooling costs. Its Unified Storage™ architecture converges best-of-breed technologies (Serial Attached SCSI, small form factor and Self-Encrypting Drives) to enable powerful yet simple external storage and internal server storage solutions that strengthen business efficiencies while cutting TCO and boosting ROI.
DPN: X160K / 0X160K
Compatibility:
All SAS compatible servers including (This list is not all inclusive):
Dell PowerEdge 1950, 1955, 2900, 2950, 6950
Compaq/HP Proliant:
BL20p G4, BL460c, BL465c, BL480c, DL360 G4p, DL360 G5, DL380 G4, DL380 G5, DL385, DL385 G2, DL580 G3, DL580 G4, DL585, DL585 G2, ML350 G5, ML370 G4, ML370 G5, ML570 G3, ML570 G4
| Specifications | |
|---|---|
| Model number | ST9146803SS |
| Model Name | Savvio® 10K.3 |
| Formatted Capacity | 146 Gbytes |
| Rotational Speed | 10,000 rpm |
| Default Buffer (cache) Size | 16 Mbytes |
| Performance | |
| External (I/O) Transfer Rate (max) | SAS 2.0 6.0Gb/s |
| Average Seek Time, Read | 4.2 msec typical |
| Average Seek Time, Write | 4.6 msec typical |
| Average Latency | 3 msec |
| Physical | |
| Form Factor | SFF |
| Height | 14.8 mm |
| Width | 70 mm |
| Length | 100.5 mm |
| Weight | 227 grams |
| Electrical | |
| Startup Current (12VDC +/- 5%) | 2.0 amps |
| Startup Current (5VDC +/- 5%) | 0.72 amps |
| Reliability | |
| MTBF (Hours) | 1,600,000 hours |
| Supports S.M.A.R.T. | Yes |
