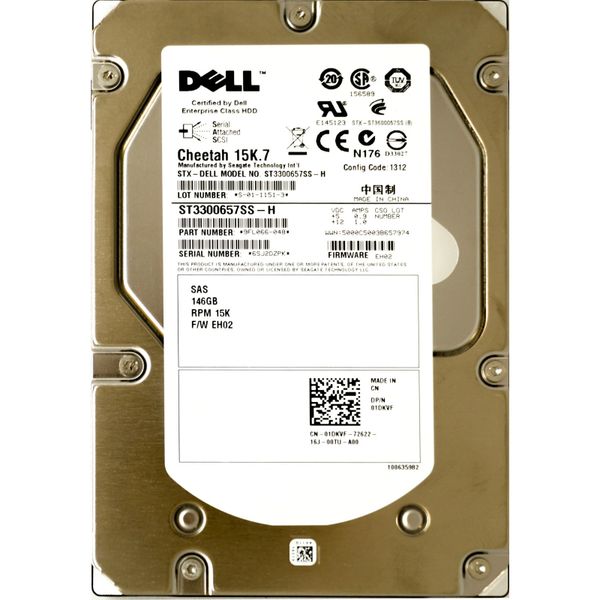

Seagate ST3300657SS-H | Dell 01DKVF 3.5 1DKVF 146GB 15K SAS Hard Drive - NEW
£279.99
£149.09
Seagate ST3300657SS-H | Dell 01DKVF 3.5 1DKVF 146Gb 15K SAS Hard Drive - NEW
Capacity: 146GB
Speed: 15,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 110 - 171
Average Seek Time: 3.4 / 3.9
Electrical Interface: SAS Serial Attached SCSI - 3.0Gbps
On-Board Cache: 16MB
Key Features and Benefits:
- Delivers high performance with sustained data rates up to 171MB/s
- third-generation perpendicular recording
- Supports 6Gb/s SAS 2.0, 4Gb/s FC, and Ultra320 SCSI interfaces*
- Includes advanced read/write technology for an unrecoverable error rate of 1x10E16 and an annualized failure rate (AFR) of 0.55 percent
- Provides TCG-compliant, Self-Encrypting Drive (SED) security option (SAS models only) to eliminate the need to overwrite or physically destroy drives, enable safe return of drives for warranty or expired lease purposes and allow organizations to securely repurpose or sell hard drives
- Meets regulatory data security compliance requirements and is FIPS 140-2 Validated™ to protect Sensitive but Unclassified and Protected class data
Alt P/N: 01DKVF ST3300657SS-H SG-01DKVF-12531-09T-046P-A00
Compatibility:
All SAS compatible servers including:
Dell PowerEdge 2900, 2950, 6900, 6950. PowerVault MD1000 and MD3000.
| Specifications | |
| Model number | 1DKVF |
| Form Factor(width) | 3.5-inch |
| Form Factor(height) | 1-inch |
| Height | 25.4 mm |
| Width | 101.6 mm |
| Length | 146.05 mm |
| Weight | 0.709 kg |
| Formatted Capacity | 146Gbytes |
 | |
| Internal Transfer Rate (min) | 1051 Mbits/sec |
| Internal Transfer Rate (max) | 2225 Mbits/sec |
| Formatted Int Transfer Rate (min) | 110 MBytes/sec |
| Formatted Int Transfer Rate (max) | 171 MBytes/sec |
| External (I/O) Transfer Rate (max) | 300 MBytes/sec |
| |
| Average Seek Time, Read | 3.4 msec typical |
| Average Seek Time, Write | 3.9 msec typical |
| Track-to-Track Seek, Read | 0.2 msec typical |
| Track-to-Track Seek, Write | 0.4 msec typical |
| Average Latency | 2 msec |
| |
| Default Buffer (cache) Size | 16 Mbytes |
| Number of Discs (physical) | 3 |
| Number of Heads (physical) | 6 |
| |
| Startup Current (12VDC +/- 5%) | 4.56 amps |
| Startup Current (5VDC +/- 5%) | 1.95 amps |
| |
| Max Operating Shock (2-msec) | 60 Gs |
| Max Nonoperating Shock (2-msec) | 250 Gs |
| Operating Vibration (max) | 1.0 Gs |
| Nonoperating Vibration (max) | 2.0 Gs |
| |
| Operating Temperature (max) | 55 deg C |
| Operating Temperature (min) | 5 deg C |
| Nonoperating Temperature (max) | 70 deg C |
| Nonoperating Temperature (min) | -40 deg C |
| Acoustics, Idle (sound power, typ) | 3.6 Bels |
| MTBF (Hours) | 1,600,000 hours |
| Nonrecoverable Read Errors | 1 per 10^16 bits read |
| Supports S.M.A.R.T. | Yes |
